Spout Camera Systems
Keep your process flowing freely. Syn-Fab’s extreme-duty industrial cameras provide clear, continuous visibility into high-temperature smelt spouts, allowing operators to safely monitor molten flow and prevent catastrophic blockages in recovery boilers.
SYN-FAB IS TRUSTED BY INDUSTRY LEADERS
Maintain Safe, Uninterrupted Smelt Flow

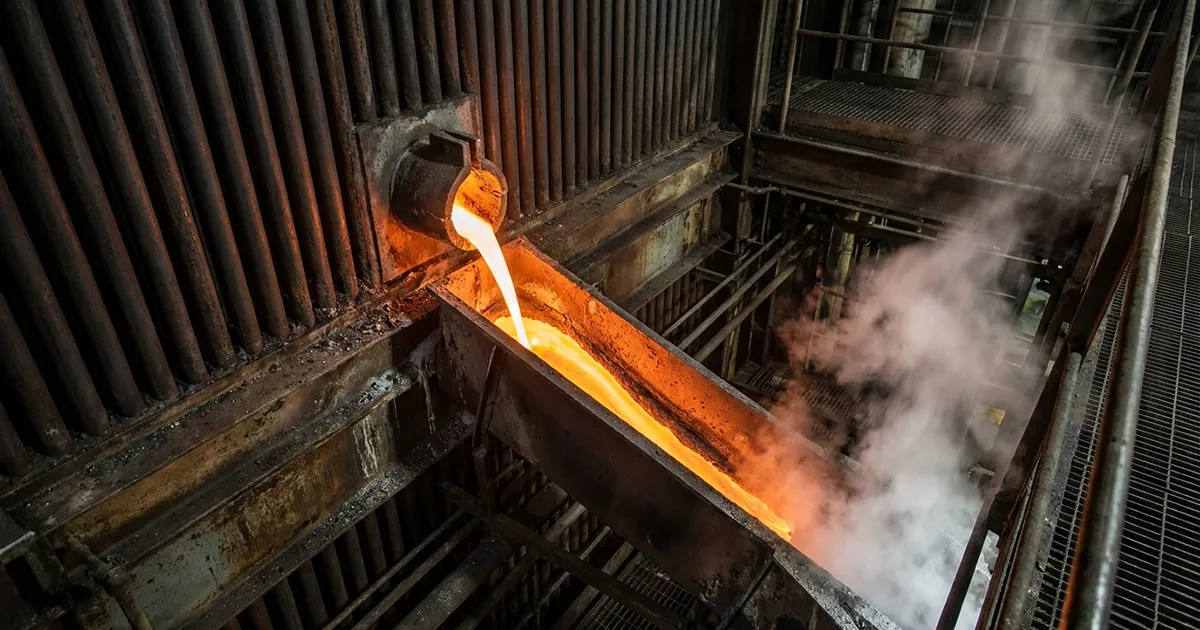

Monitoring the flow of molten smelt from the recovery boiler to the dissolving tank is one of the most critical safety and operational requirements in a pulp mill. Syn-Fab’s extreme-duty industrial cameras provide clear, continuous visibility of the smelt spouts, allowing operators to monitor trajectory, detect cooling or heavy runoff, and prevent catastrophic blockages before they cause a smelt-water explosion or force an unplanned shutdown.
Recommended Cameras for Smelt Spout Monitoring
The intense heat, steam, and corrosive environment around the smelt spout deck will quickly destroy standard monitoring equipment. Syn-Fab’s Sentinel series (including the SF20C and SF30C) features heavy-duty enclosures, advanced cooling, and high-velocity air-purging systems designed specifically to survive and provide clear imaging at the spout deck.
Recommended Cameras for Spout Monitoring
The intense heat, corrosive steam, and splashing molten material around the smelt spout deck will quickly destroy standard monitoring equipment. Syn-Fab’s Sentinel series (including the SF20C and SF30C) features extreme-duty enclosures, active cooling, and high-velocity air-purging systems designed specifically to survive and provide clear, continuous imaging in these brutal recovery boiler environments.
Industries Utilizing Spout Camera Systems
Syn-Fab provides engineered imaging solutions across multiple heavy industry sectors. See how our diagnostics are applied in your specific facility.
Integrated Partner Technologies
Fluke Kiln Shell Scanners
Detect hot spots and prevent refractory failures in real-time. Fluke’s advanced thermal imaging seamlessly integrates with Syn-Fab systems for complete kiln monitoring.
Sintrol Dust Monitoring Solutions
Reliable particulate measurement for harsh industrial environments. Monitor emissions, detect baghouse leaks, and ensure compliance with proven inductive electrification technology.
Spout Camera Systems FAQs
Review common questions regarding the installation, operation, and environmental protection of our Spout Camera Systems. Don't see your specific application addressed? Our engineering team is available to help you configure the right imaging solution for your facility.
How does the camera survive the intense heat and steam near the smelt spouts?
Syn-Fab Sentinel cameras deployed on the spout deck are equipped with extreme-duty enclosures, active cooling systems, and continuous air-purging. The high-velocity air barrier keeps the camera lens clear of steam and corrosive splashing, while the cooling system protects the electronics from the high ambient heat of the recovery boiler.
Can the camera help prevent smelt spout blockages?
Yes. Continuous, high-resolution monitoring allows operators in the control room to easily see if a spout is beginning to freeze over, if the smelt flow is slowing, or if a "jellyroll" is forming. By catching these issues early, operators can take action (such as manually rodding the spout) before a full blockage occurs.
Where are smelt spout cameras typically mounted?
Our cameras are typically mounted on the wall or structure opposite the recovery boiler, giving a clear, direct view of the spouts and the hood openings above the dissolving tank. We provide versatile, heavy-duty mounting hardware to ensure stable imaging despite the vibration and harsh conditions of the spout deck.
