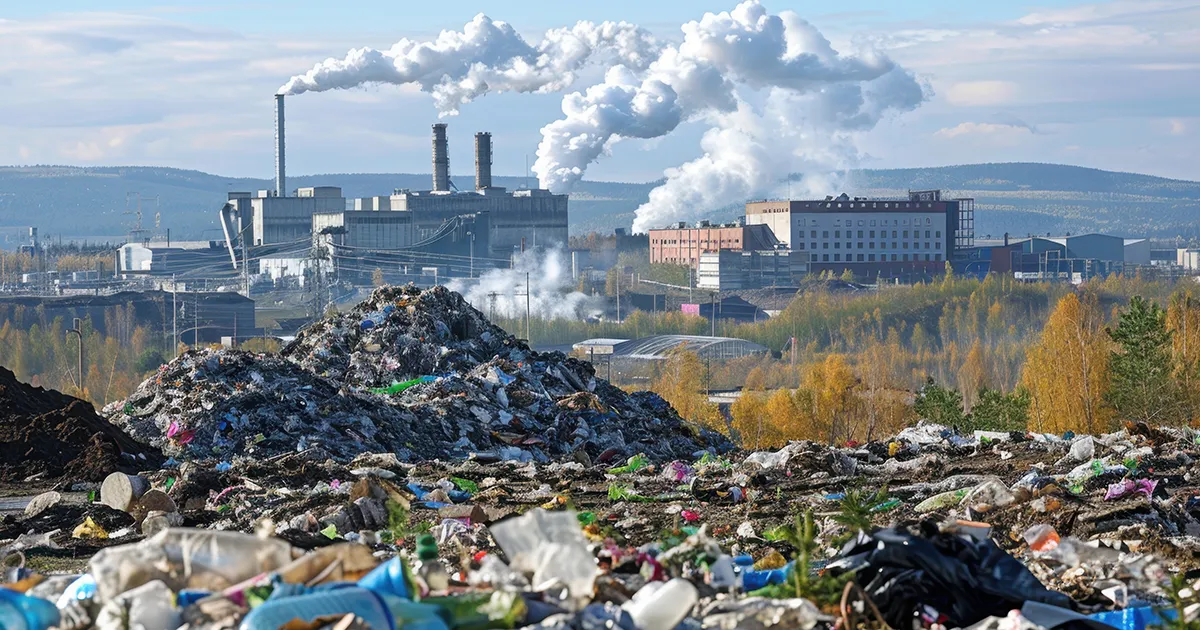

Refuse & Waste to Energy
Waste-to-energy facilities process some of the most unpredictable and corrosive fuels in the power sector. Syn-Fab’s ruggedized waste to energy camera systems provide operators with continuous, real-time visibility into the heart of the combustion process. From advanced refuse boiler cameras to tipping hall monitoring, our imaging solutions allow you to optimize grate speed, detect feed blockages, and ensure complete combustion.
SYN-FAB IS TRUSTED BY INDUSTRY LEADERS
The Challenge of Unpredictable Fuel
Unlike coal or natural gas plants, Waste-to-Energy (WTE) facilities must generate stable power from a highly inconsistent fuel source. Municipal solid waste varies wildly in moisture content and combustibility from minute to minute. Operating these boilers without continuous visual confirmation forces control rooms to react to delayed emissions and temperature data. Syn-Fab’s waste to energy camera systems provide the live optical feedback operators need to proactively adjust under-fire air and grate speeds, ensuring stable steam production.
Advanced Incinerator Monitoring Technology
The environment inside a refuse boiler is uniquely hostile, combining extreme heat with highly corrosive acid gases (like HCl) and sticky fly ash. Syn-Fab’s high-temperature refuse boiler cameras are purpose-built for this environment. Utilizing specialized near-infrared (NIR) sensors to penetrate combustion smoke, and protected by continuous vortex air-purging, our systems deliver clear, uninterrupted video while resisting chemical corrosion and slagging.
Critical Monitoring Zones in WTE Plants
Combustion Grates & Burnout Zones
Complete combustion is essential for minimizing toxic emissions and maximizing energy recovery. Our trash combustor cameras provide a clear view of the fuel bed as it travels across the grate, allowing operators to monitor the drying, ignition, and burnout zones to prevent unburned refuse from falling into the ash pit.
Charging Hoppers & Feed Chutes
Bridging and blockages in the refuse feed chute can instantly destabilize boiler operation. Syn-Fab’s ruggedized process cameras monitor the charging hoppers in real-time, alerting operators to bridging events so they can be cleared safely and quickly before impacting steam flow.
Tipping Halls & Refuse Cranes
Efficient combustion starts in the bunker. Crane operators need clear visibility to properly mix wet and dry waste before feeding the hoppers. Syn-Fab provides heavy-duty, dust-resistant cameras for the tipping hall, ensuring safe truck offloading and optimized fuel management.
“Operating a refuse boiler blindly forces operators to react to delayed emissions data. Syn-Fab provides the live optical feedback needed to proactively ensure stable steam production.”
A Partner in Resource Recovery
Syn-Fab systems are trusted by municipal solid waste facilities and resource recovery plants worldwide. We understand that preventing a single forced outage easily pays for the cost of a camera system. From the dust of the tipping hall to the corrosive heat of the incinerator grate, Syn-Fab provides the critical vision you need to run clean, safe, and efficient operations.
Rugged Cameras for MSW Incineration
The corrosive acid gases and high particulate levels found in MSW combustors will quickly destroy standard optical equipment. Syn-Fab’s incinerator monitoring systems are engineered with specialized alloys, liquid cooling, and continuous air-purging to survive the harsh chemical environments of municipal solid waste processing.
Mongoose™ (SF12CS Series) Visible Light Camera & Imaging Systems
The Mongoose™ (SF12CS Series) is a rugged, high-temperature visible light camera and imaging system. Ideal for power boilers, lime kilns, and industrial furnaces.
See more
Sentinel Series Industrial Process & Material Cameras
Discover Syn-Fab Sentinel Series cameras (SF20, SF21C, SF30TI, SF36C). Rugged, high-performance industrial process and material monitoring.
See more
Trusted by the World's Most Demanding Plants
Proven in the Toughest Environments
I want to highlight the exceptional work of Mike, Keith, and Monty. They have been instrumental in the successful upgrade of the camera system for all three of our furnaces. Their expertise and support ensured a smooth transition for this critical project.
Todd P.
US Steel
Critical Vision from Tipping Hall to Ash Pit
Explore how Syn-Fab imaging systems are deployed across modern resource recovery facilities, delivering vital visual data from the refuse bunker to the combustion grate.
Biomass & Bark Boiler Cameras
Gain clear, real-time visibility into biomass and bark boiler combustion zones. Monitor fuel distribution, grate conditions, and ash buildup to maximize boiler efficiency.
See More
Power Boiler Cameras
Optimize fuel beds and detect tube leaks with Syn-Fab power boiler cameras. Engineered for high-temperature furnace and grate monitoring.
See More
Bark Bin Camera Systems
Improve safety and material flow with Syn-Fab bark bin cameras. Built for extreme dust and heavy industrial material handling environments.
See More
Refuse & Waste to Energy FAQs
Review common questions regarding the installation, operation, and environmental protection of our Refuse & Waste to Energy. Don't see your specific application addressed? Our engineering team is available to help you configure the right imaging solution for your facility.
Why are specialized refuse boiler cameras necessary?
MSW fuel has a highly variable moisture and heating value, requiring constant combustion adjustments. Syn-Fab refuse boiler cameras allow operators to visually monitor the flame profile, grate coverage, and burnout zone to maintain optimal temperatures and prevent emissions spikes.
Can your cameras withstand the corrosive environment of a trash combustor?
Yes. The combustion of plastics and waste creates highly corrosive gases. Our trash combustor cameras utilize heavy-duty dual-wall housings and positive-pressure instrument-air purges to protect the lens and internal electronics from acid gas attack and slag buildup.
Do you provide monitoring for tipping halls and refuse bunkers?
Absolutely. Complete waste to energy camera systems extend beyond the boiler. We provide ruggedized process cameras, like our Sentinel series, to monitor the tipping floor, refuse cranes, and charging hoppers to prevent blockages and help crane operators manage fuel mixing.
