Terminator™ Boiler & Furnace Cameras (SF12MT)

Engineered to see through smoke, ash, and haze. The ultimate high-temperature imaging system for recovery boilers, smelt bed monitoring, and volatile industrial furnaces.

Request a Quote

View Specifications

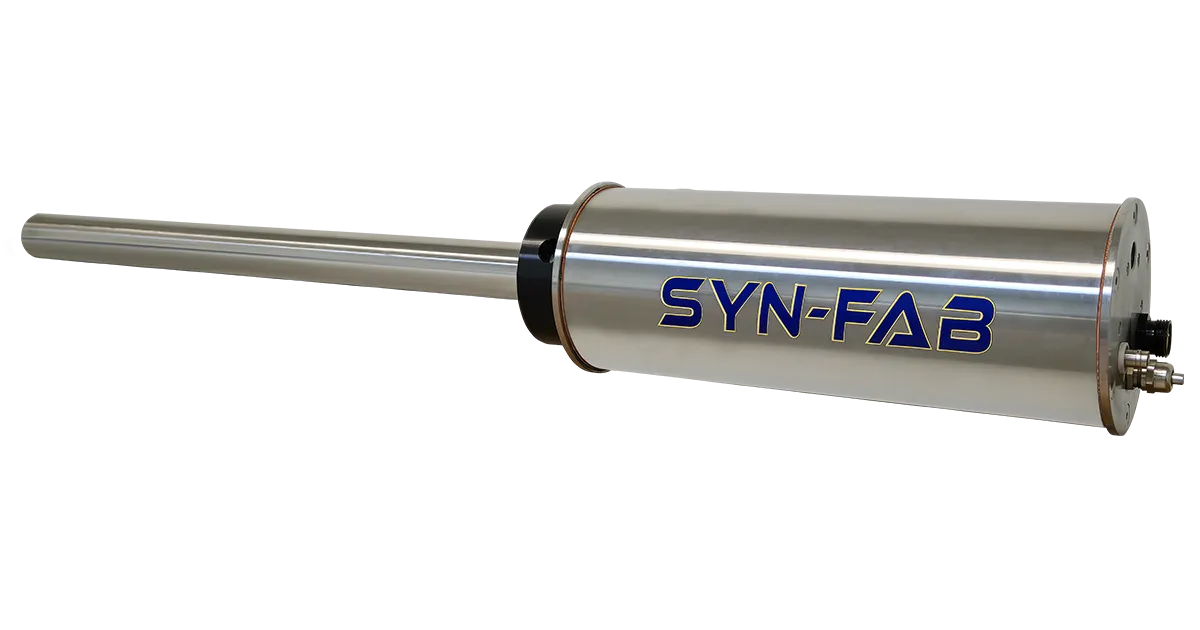

Syn-Fab Terminator SF12MT high-temperature camera system for recovery boilers and smelt bed monitoring

Sensor Type

Uncooled Microbolometer

Cooling Method

Air-Cooled (Instrument Quality Air)

Housing

PHASE III STEELON™ (Stainless over high-temp synthetic)

Primary Application

Recovery Boilers & Smelt Beds

See Through the Haze. Eliminate Your Imaging Problems.

The Terminator™ Series (SF12MT) utilizes a wavelength-optimized infrared optical system designed specifically to penetrate the dense smoke, falling ash, and volatile gases found in the world's most hostile environments—including recovery boilers and power boilers.

By combining advanced optics with a state-of-the-art Uncooled Microbolometer sensor, the Terminator provides an unparalleled level of definition and contrast. It delivers crystal-clear, real-time video and temperature data, allowing operators to continuously monitor the furnace without being blinded by atmospheric conditions.

The Ultimate Smelt Bed Camera System

Housed in our proprietary IP66/NEMA 4X STEELON™ enclosure, the Terminator is the industry standard for smelt bed monitoring. The exceptional clarity enables the early detection of tube leaks, prevents runoffs, and provides the precise visual data needed to safely assist in shaping and positioning fuel beds.

Recovery Boiler Monitoring

Wavelength-optimized imaging penetrating dense smoke and ash.

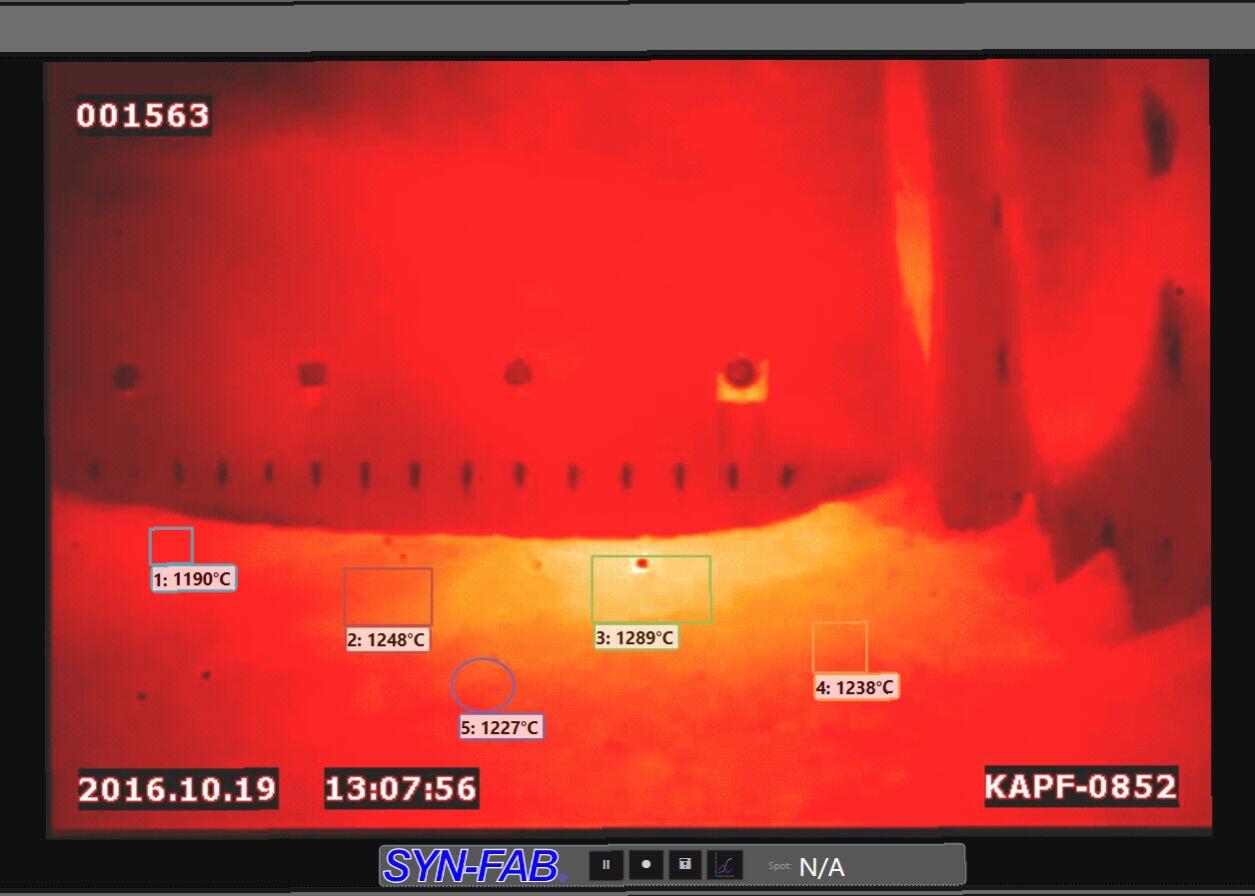

Thermal imaging of a recovery boiler smelt bed showing temperature zones captured by the Syn-Fab Terminator S12MT camera.

Multi-Zone Thermal Mapping

The Terminator SF12MT delivers precise, real-time temperature analysis of the smelt bed. By defining multiple measurement zones, operators can continuously monitor temperature gradients, instantly identify localized cooling, and ensure optimal combustion efficiency.

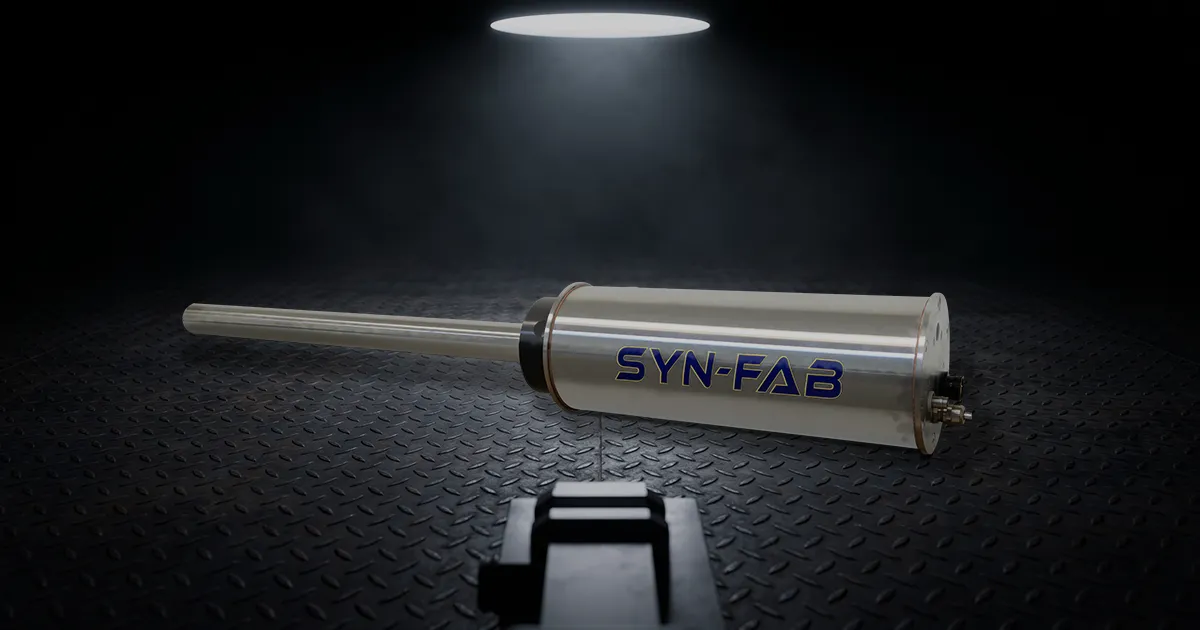

Syn-Fab Terminator SF12MT high-temperature recovery boiler and smelt bed camera.

Ready to eliminate your boiler imaging problems?

Contact our engineering team to review your facility's requirements and configure a Terminator™ system designed to see through your specific boiler atmosphere.

Talk to an Engineer

View all Camera Solutions

Terminator™ System Specifications

Model:

SF12MT PIII

General Optics

Sensor Type:

Uncooled Microbolometer

Spectral Range:

MWIR

Resolution:

High-Resolution Thermal Imaging

Video/Output Options:

NTSC (Optional PAL or Ethernet)

Angles of View / Lens Options:

Straight Ahead (12" to 65"), 45° Obtuse & 90° Right-Angle (18" to 48")

Temperature Ratings

Operating Scene Temperature:

Scenes being monitored up to 3500°F (1927°C)

Ambient Temp / Enclosure Rating:

Ambient up to 550°F (289°C) with accessories

Infrastructure and Utilities

Power Requirements:

12 VDC with 100-240 VAC adapter (50/60 Hz)

Housing Material:

PHASE III STEELON™ (Stainless steel over high temp synthetic)

Lens Air Purge Requirements:

15-25 psig @ 20-40 scfm (Instrument quality air only, T<100°F)

Enclosure Air Purge Requirements:

3-10 psig @ 3-10 scfm

Compatible Accessories

Radiometric calibration for Pyro-Viper HD, Data interface to plant network, Manual slide trac mount, Tripod base

Download Spec Sheet

Download Product Brochure

Proven in Volatile Boiler Environments

The Terminator™ Series is the industry standard for penetrating smoke, heavy ash, and chemical haze. Explore the specific high-temperature applications where our cameras prevent downtime and provide critical visibility.

View All Camera Applications

Engineered for Heavy Industry

The Terminator™ Series is built to survive the harshest manufacturing atmospheres on earth. See how our thermal imaging systems protect critical assets across the pulp and paper, power generation, and chemical processing sectors.

Pulp, Paper, & Lumber

Syn-Fab engineers specialized pulp, lumber, and paper mill camera systems. Safely monitor recovery boilers, smelt beds, lime kilns, and bark bins.

Power Generation

Syn-Fab manufactures high-temperature power plant camera systems and utility boiler diagnostics. Monitor fireballs, gasifiers, and ash handling areas.

Chemical Petroleum

Syn-Fab provides specialized high-temperature chemical plant camera systems and refinery imaging. Safely monitor crude heaters, reformers, and hazardous areas.

View All Supported Industries

Terminator™ SF12MT FAQs

Review common questions regarding the Terminator’s cooling requirements, temperature ratings, and system integration. Don't see what you're looking for? Our engineering team is available to help you spec the right system for your application.

The Terminator camera system requires clean, dry compressed air at approximately 15–20 PSI and 15–20 SCFM to provide adequate cooling and purge the viewing window. Actual air requirements vary depending on the furnace lens length and operating environment.

In most applications, water cooling is not required. The Terminator system is typically protected using an air purge that cools both the furnace lens and camera housing. For extremely demanding environments, water-cooled systems are available.

If the system is equipped with an auto-retract, the Terminator camera will automatically retract and withdraw the furnace lens upon loss of purge air or electrical power. The system can also be configured to retract on high-temperature alarms.

Yes. The Terminator is designed so the camera can be removed for inspection, cleaning, or maintenance without shutting down the process. An optional self-sealing wallbox closes when the camera is removed, helping protect personnel from process heat and blowback.

In many applications, yes. Mill air can often be used provided it is properly filtered, dry, and oil-free before reaching the camera system. Contaminated air can reduce cooling efficiency, shorten component life, and degrade system performance.

Yes. Syn-Fab camera systems can be integrated with most existing plant control systems and DCS platforms. We offer both Ethernet/IP and analog camera systems, allowing the video and data to be incorporated into most modern control architectures.

Yes. Syn-Fab’s furnace cameras can be ordered in a portable configuration that allows real-time inspections during normal operations or shut-downs. This includes a smaller air assembly and a local monitor with recording capabilities.
