Mongoose™ (SF12CS Series) Visible Light Camera & Imaging Systems

The Mongoose™ (SF12CS Series) is our most versatile high-temperature visible light monitoring solution. Engineered for severe industrial environments, it operates reliably as a precision boiler camera, kiln camera, or full furnace imaging system, delivering continuous, clear visibility where standard cameras fail.

Request a Quote

View Specifications

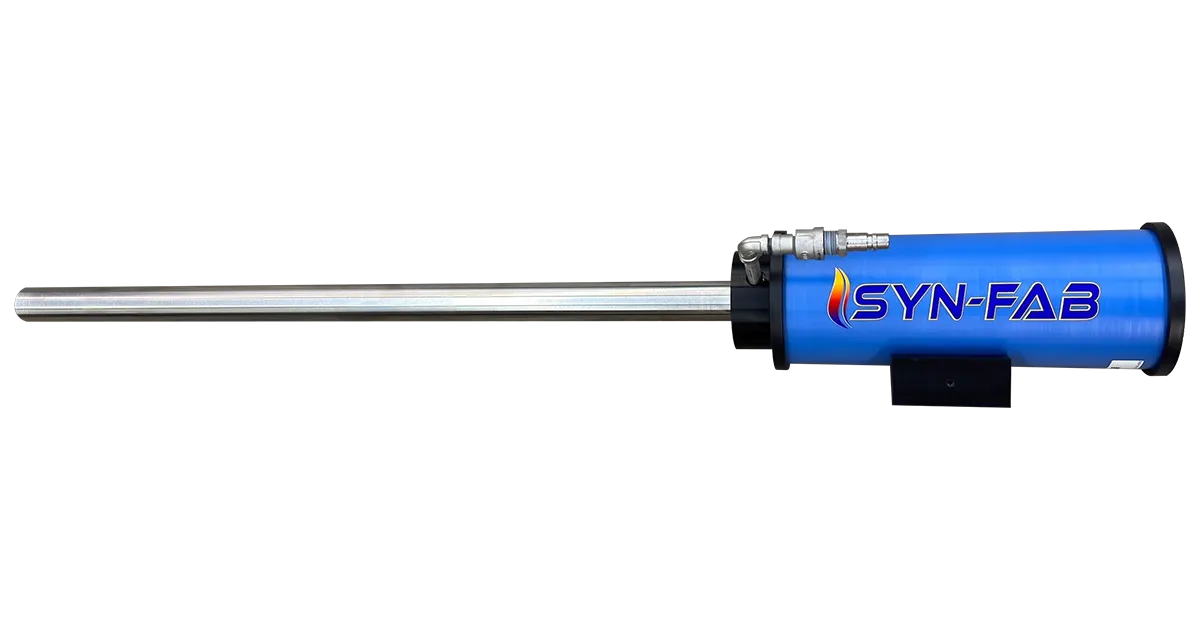

Syn-Fab Mongoose boiler camera (SF12C series) designed for high-temperature boiler monitoring.

Primary Application

Power boilers, Kilns & Clinker Coolers

Camera Technology

Visible Light: HD & Analog

Cooling Method

Continuous Air Purge (Water Optional)

Lens Construction

Heavy-Duty Schedule 10 Stainless Steel

The Standard for Industrial Process Monitoring

The Mongoose™ (SF12CS Series) is the most widely deployed high-temperature camera system in the Syn-Fab lineup. Built to withstand the harshest industrial environments, it provides continuous, reliable visibility for applications ranging from power boiler combustion monitoring to cement kiln clinker tracking.

Versatility Across Industries

Whether you are monitoring the hot end of a lime kiln, preventing build-up in a clinker cooler, or managing a waste-to-energy refuse boiler, the Mongoose delivers. Its heavy-duty Schedule 10 stainless steel lens construction and efficient air-purge cooling ensure uninterrupted operation in high-slag, high-dust, and extreme heat environments.

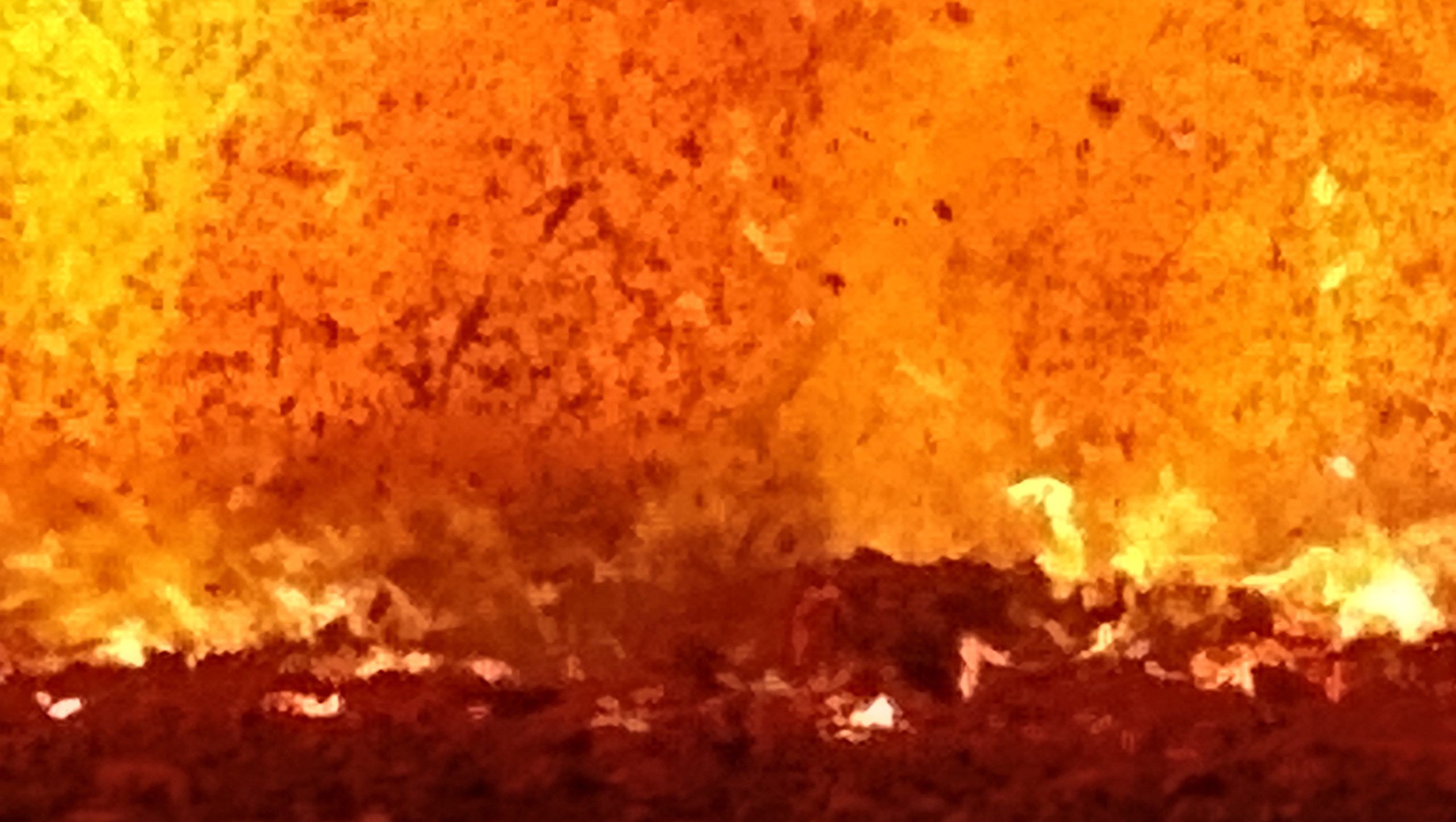

Grate Combustion Monitoring

Real-time visibility of fuel distribution and combustion dynamics on the boiler grate.

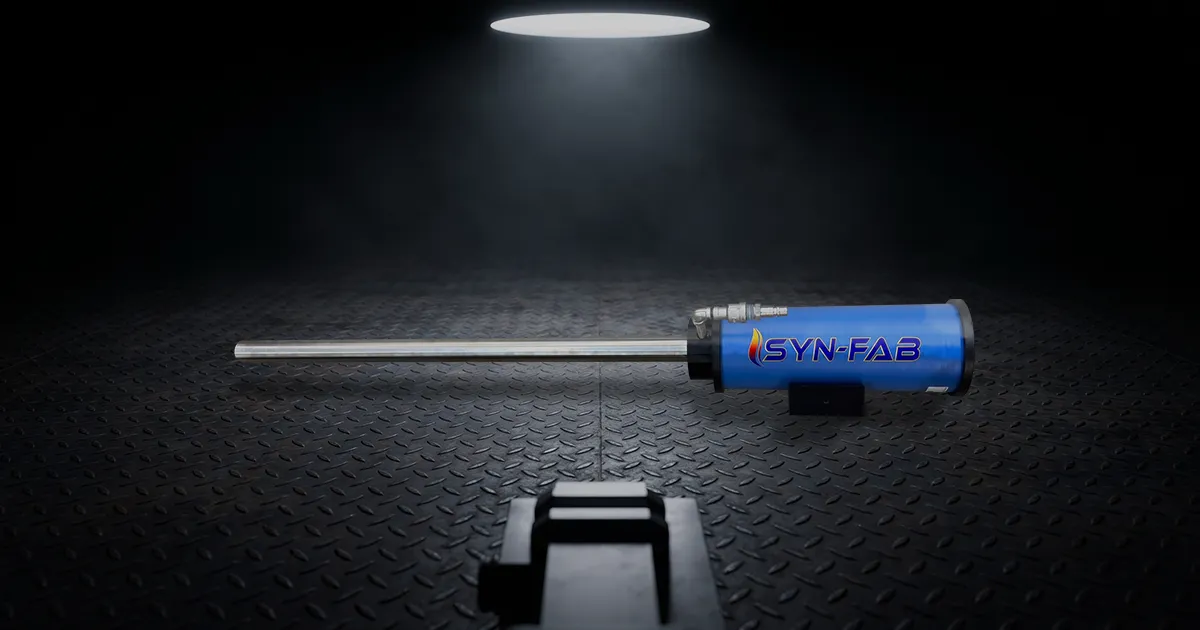

Blue Syn-Fab device with a long metal probe resting on a diamond-plate floor under a single overhead spotlight.

Configure a Mongoose™ for your process.

Syn-Fab systems are custom-built to match your exact application requirements. Contact our engineering team today to discuss temperature ratings, lens configurations, and sensor options for your boiler or kiln.

Talk to an Engineer

View all Camera Solutions

Mongoose™ System Specifications

Model:

SF12CS-HD PIII (High Definition)

General Optics

Sensor Type:

Solid State Visible Light

Spectral Range:

Visible Light

Resolution:

High-Resolution HD Digital

Video/Output Options:

NTSC, PAL, Ethernet (IP) / Digital

Angles of View / Lens Options:

Straight Ahead (Standard), 45° Obtuse, 90° Right-Angle (Lengths: 24in to 60in)

Temperature Ratings

Operating Scene Temperature:

Up to 3500°F (1927°C)

Ambient Temp / Enclosure Rating:

Ambient up to 550°F (289°C) with accessories

Infrastructure and Utilities

Power Requirements:

12 VDC with 100-240 VAC adapter (50/60 Hz)

Housing Material:

PIII STEELON™ (Stainless steel over high temp synthetic)

Lens Air Purge Requirements:

15-25 psig @ 15-20 scfm (Instrument quality air only, T<100°F)

Enclosure Air Purge Requirements:

3-10 psig @ 3-10 scfm

Compatible Accessories

SAM0007-XX or SAM0012-XX Wallbox
SAM0009 or SAM0028 Air Filtration System
MSS0010C Automatic Retract
Video Recording
Video Monitor
Coaxial Cable, Fiber Optic, or Ethernet Transmission System
Automatic Port Deslagger
Quick-change Lens

Download Spec Sheet

Download Product Brochure

Model:

SF12CS PIII (Standard Visible)

General Optics

Sensor Type:

Solid State Visible Light

Spectral Range:

Visible Light

Resolution:

Standard High-Resolution Analog

Video/Output Options:

NTSC, PAL, High-Resolution HD digital formats available

Angles of View / Lens Options:

Straight Ahead (Standard), 45° Obtuse, 90° Right-Angle (Lengths: 24in to 60in)

Temperature Ratings

Operating Scene Temperature:

Up to 3500°F (1927°C)

Ambient Temp / Enclosure Rating:

Ambient up to 550°F (289°C) with accessories

Infrastructure and Utilities

Power Requirements:

12 VDC with 100-240 VAC adapter (50/60 Hz)

Housing Material:

PIII STEELON™ (Stainless steel over high temp synthetic)

Lens Air Purge Requirements:

15-25 psig @ 15-20 scfm (Instrument quality air only, T<100°F)

Enclosure Air Purge Requirements:

3-10 psig @ 3-10 scfm

Compatible Accessories

SAM0007-XX or SAM0012-XX Wallbox
SAM0009 or SAM0028 Air Filtration System
MSS0010C Automatic Retract ▪ Video Recording
Video Monitor
Coaxial Cable, Fiber Optic, or Ethernet Transmission System
Automatic Port Deslagger
Quick-change Lens

Download Spec Sheet

Download Product Brochure

Engineered for Your Process

The Mongoose series is designed to handle the diverse demands of heavy industry. From monitoring the intense combustion of power boilers to tracking clinker formation in cement kilns, discover how the Mongoose platform can be configured for your specific application.

View All Camera Applications

Industries Powered by the Mongoose™

Because it can be configured with Visible sensors (HD or analog), the Mongoose is uniquely equipped to handle the specific environmental challenges of almost any industrial sector. Select your industry below to see how the SF12 series is deployed in your field.

Pulp, Paper, & Lumber

Syn-Fab engineers specialized pulp, lumber, and paper mill camera systems. Safely monitor recovery boilers, smelt beds, lime kilns, and bark bins.

Power Generation

Syn-Fab manufactures high-temperature power plant camera systems and utility boiler diagnostics. Monitor fireballs, gasifiers, and ash handling areas.

Cement

Syn-Fab provides rugged cement plant camera systems designed for extreme heat and dust. Safely monitor cement kilns, clinker coolers, and mud filters.

Steel & Metal

Syn-Fab engineers rugged steel mill camera systems and foundry imaging solutions. Safely monitor reheat furnaces, blast furnaces, and transfer areas.

Chemical Petroleum

Syn-Fab provides specialized high-temperature chemical plant camera systems and refinery imaging. Safely monitor crude heaters, reformers, and hazardous areas.

Refuse & Waste to Energy

Syn-Fab provides rugged incinerator and waste to energy camera systems. Safely monitor refuse boilers, combustors, tipping halls, and conveyor belts.

View All Supported Industries

Trusted by the World's Most Demanding Plants

Proven in the Toughest Environments

I want to highlight the exceptional work of Mike, Keith, and Monty. They have been instrumental in the successful upgrade of the camera system for all three of our furnaces. Their expertise and support ensured a smooth transition for this critical project.

Todd P.

US Steel

Mongoose™ SF12CS system FAQs

Review common questions regarding the Terminator’s cooling requirements, temperature ratings, and system integration. Don't see what you're looking for? Our engineering team is available to help you spec the right system for your application.

In most applications, water cooling is not required. The Mongoose system is typically protected using a continuous air purge that cools both the furnace lens and camera housing. Water-cooled systems are available for extremely demanding environments.

The Mongoose typically requires clean, dry compressed air at approximately 15–20 PSI and 15–20 SCFM to provide adequate cooling and purge the viewing window. Actual requirements vary depending on the furnace lens length and installation environment.

If equipped with an auto-retract, the Mongoose camera will automatically retract and withdraw the furnace lens upon loss of purge air or electrical power, protecting the camera core and lens assembly from severe heat damage.

In many applications, yes. Mill air can often be used provided it is properly filtered, dry, and oil-free before reaching the camera system. Contaminated air can reduce cooling efficiency, shorten component life, and degrade system performance.

Yes. Syn-Fab’s furnace cameras can be ordered in a portable configuration that allows real-time inspections during normal operations or shut-downs. This includes a smaller air assembly and a local monitor with recording capabilities.
