Smelt Bed Cameras

The Challenge of Recovery Boiler Monitoring

Operating a chemical recovery boiler in a pulp mill is one of the most volatile and dangerous processes in heavy industry. Operators must maintain a delicate balance of black liquor combustion, char bed height, and continuous smelt flow. If the char bed builds up too high, it chokes the boiler; if a water tube leaks and contacts the smelt bed, it can cause a catastrophic explosion. Standard cameras are immediately blinded by the dense chemical smoke, falling ash, and extreme heat, leaving control room operators completely blind to rapidly deteriorating combustion conditions. If your facility is also monitoring wood waste combustion, explore our dedicated bark boiler imaging systems.

Wavelength-Optimized Smelt Bed Imaging

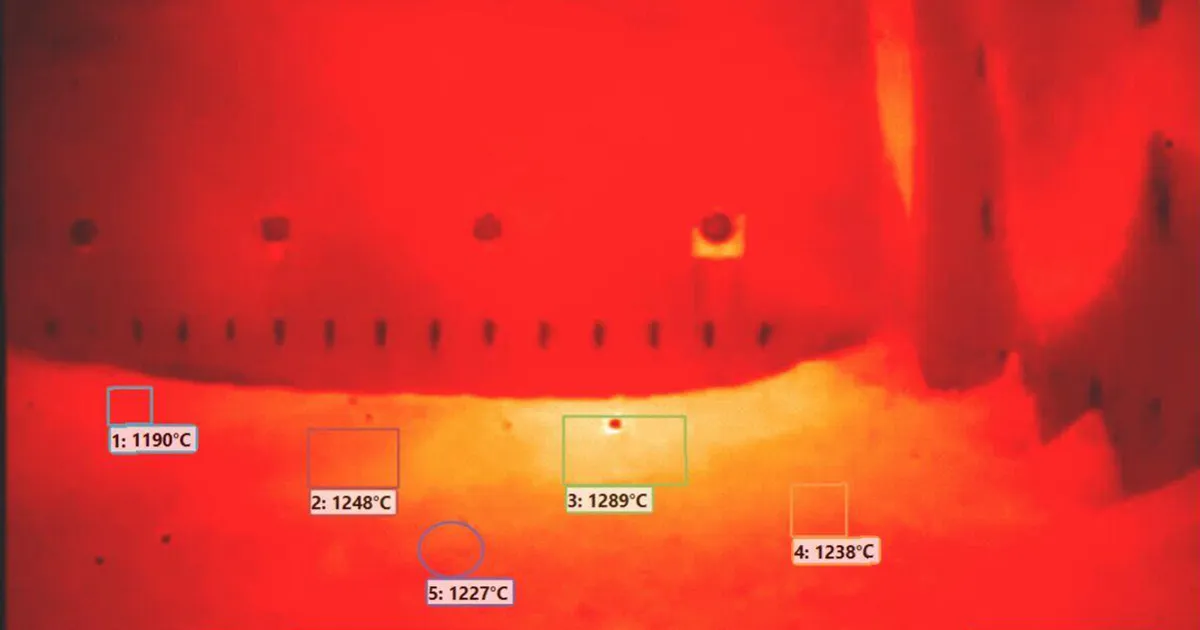

Syn-Fab smelt bed camera systems—including the industry-standard Terminator series—utilize advanced, wavelength-optimized infrared optics specifically designed to cut through dense recovery boiler smoke and chemical haze. Housed in rugged PIII STEELON™ enclosures with continuous air-purge protection, our systems provide a crystal-clear, real-time view of the char bed, smelt spouts, and burner zones, ensuring continuous operation in ambient temperatures up to 550°F (289°C).

Operational Benefits:

• Monitor Char Bed Health: Visually confirm char bed height, shape, and stability to optimize the black liquor firing rate and prevent boiler choking.
• Ensure Smelt Spout Flow: Continuously monitor the smelt spouts for blockages or heavy runoff, preventing dangerous buildup and shattered shatter jets.
• Prevent Water-Smelt Explosions: Detect tube leaks instantly, allowing operators to initiate emergency shutdown procedures before water contacts the active smelt bed.
• Eliminate Port Rodding Risks: Drastically reduce the need for personnel to conduct hazardous manual visual inspections at the boiler observation ports.
